Descrição:
uma unidade
Potência RMS: 400W RMS Potência máx: 800W máx Bobina(s): BD 2x4 Ohms Diâmetro: 12 polegadas Peso: 10Kg Dados técnicos:

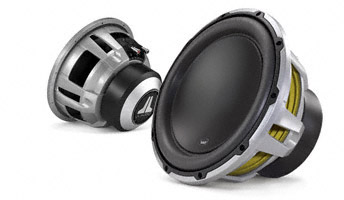

Modelo 12W6v2-D4
Free Air Resonance (Fs): 25.0 Hz
Electrical “Q” (Qes): 0.480
Mechanical “Q” (Qms): 7.100
Total Speaker “Q” (Qts): 0.450
Equivalent Compliance (Vas): 2.82 cu. ft. / 79.9 liters
One-Way, Linear Excursion (Xmax)*: 0.65 in. / 16.5 mm
Reference Efficiency (no): 0.250%
Efficiency (1W/1m)**: 85.9 dB SPL
Effective Piston Area (Sd): 77.8 sq. in. / 0.0502 sq. m.
DC Resistance (Re): 6.75 ohm***
Nominal Impedance (Znom): Dual 4 ohm
Thermal Power Handling (Pt): 400W
Driver Displacement: 0.090 cu. ft. / 2.5 liters
Net Weight: 19.4 lbs. / 8.8 kg
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1W/1m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.

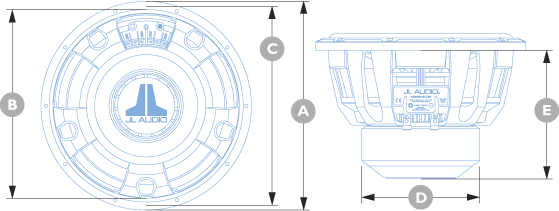

Nominal Diameter = 12.0 in. / 305 mm
Overall Diameter (A) = 12.5 in. / 317.5 mm
Mounting Hole Diameter (B) = 11.0 in. / 279.5 mm
Bolt Hole Circle (C) = 11.86 in. / 301 mm
Magnet Diameter (D) = 6.65 in. / 169 mm
Mounting Depth (E) = 7.6 in. / 193 mm
Garantia: 1 ano de fábrica
Site do fabricante JL Audio: http://mobile.jlaudio.com/
Observações: Prazo de 4 dias úteis para envio após confirmação do pagamento.
